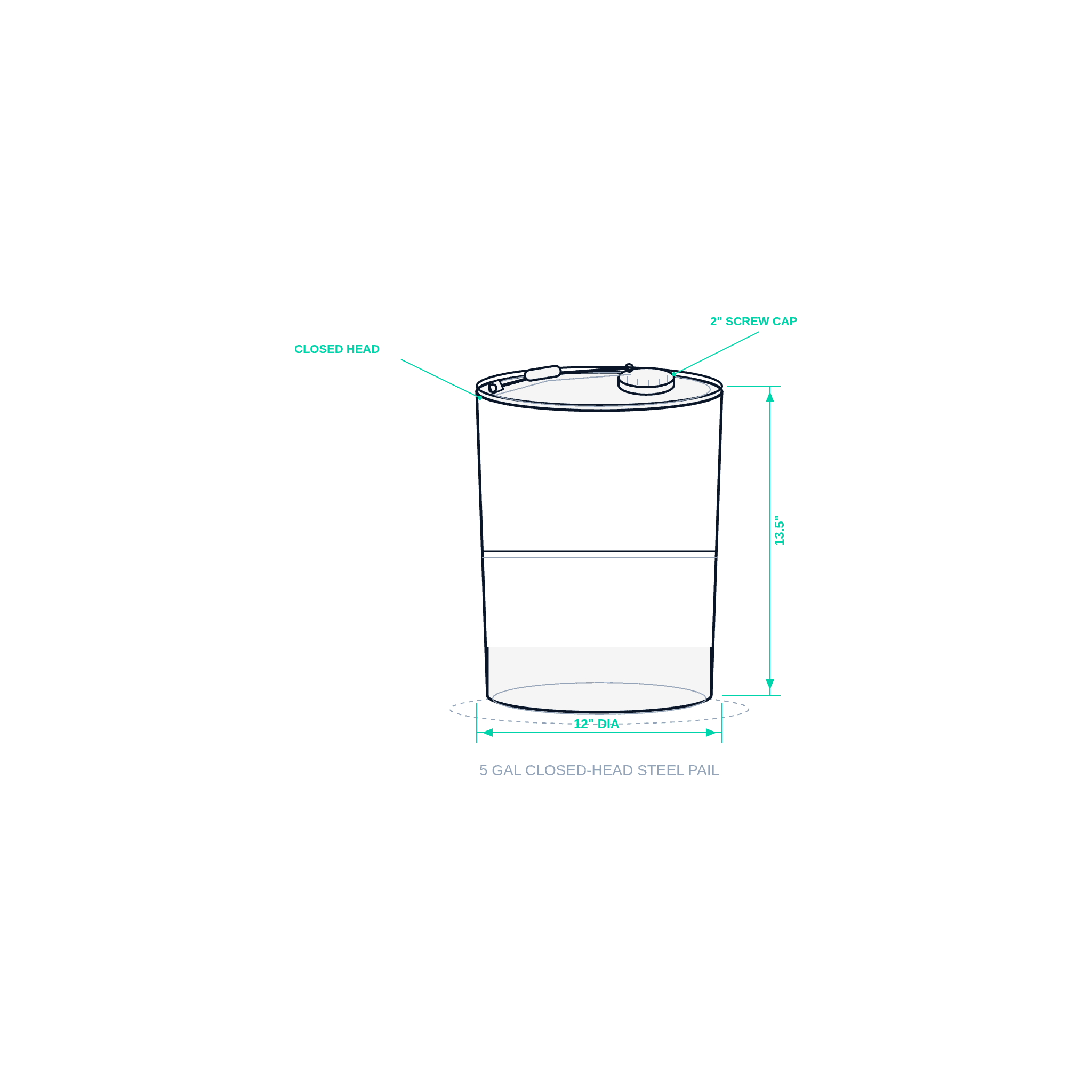

5-Gallon Closed-Head Steel Pail — dimensioned specification diagram

The 5-Gallon Closed-Head Steel Pail is built from 24-26 gauge carbon steel with a non-removable top and a 2-inch screw closure, so the contents stay sealed in transit. A steel bail handle folds flat against the head for stacking and lifts for one-handed carrying.

Key Features

  • 24-26 gauge carbon steel body for chemical compatibility and dent resistance
  • Closed (tight) head — seamed, not a removable cover
  • 2" screw cap with gasket for a sealed, resealable closure
  • Steel bail handle that folds flat onto the head
  • UN 1A1/Y1.8/200 — Packing Groups II and III, tested to 200 kPa

Dimensions & Weight

  • Top diameter: 11.8"
  • Overall height: 13.5"
  • Empty weight: approximately 3.4 lbs

Lining Options

  • Unlined (standard rust inhibitor)
  • Epoxy-phenolic — for alkaline products (pH 7-14)
  • Pigmented phenolic — for acidic products (pH 3-7)

Applications

Solvents, coatings, adhesives and industrial chemicals that ship sealed. A closed head keeps the product contained and pours through the cap; choose an open-head pail instead when the contents must be scooped or mixed in the container.

Material
24-26 gauge carbon steel
Gauge
24-26 gauge
Closure
Closed head with 2" screw cap and gasket
Handle
Steel bail, folds flat onto the head
Dimensions
11.8" top dia x 13.5" H
Weight (empty)
~3.4 lbs
Color
Black, rust-inhibited interior
Top
Aluminium, Rieke prep
UN Rating
UN 1A1/Y1.8/200 — Packing Groups II & III
Lining Options
Unlined (rust inhibitor), epoxy-phenolic, pigmented phenolic
